Machining Projects

Plumbob/Charpy v-notch/123-Block

by

Project Description:

  • Machine Charpy V-notch samples according to specification
  • Machine Plumbob according to specification
  • Machined123 block according to specification

Work Completed:

  • Machined 3 parts from raw stock metal to specified tolerance from engineering drawings using multiple machining processes
  • Machined Charpy V-notch samples within tolerance to be used for Charpy testing in the University using band saw, chop saw, measurement tools, grinder, and milling machine

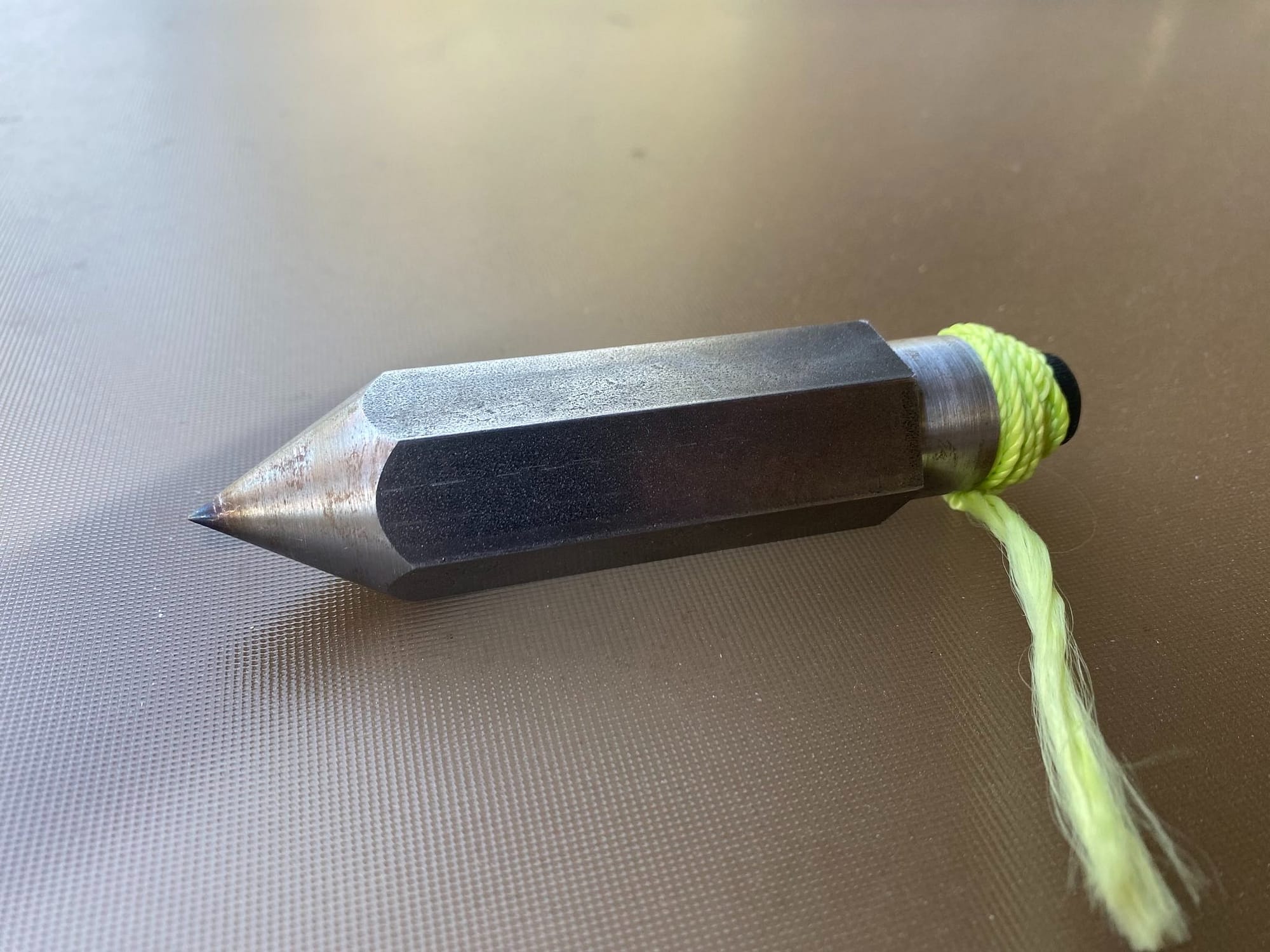

  • Machined Plumb bob within tolerance using the lathe for taper turning, metal removal, drilling and tapping
  • Machined a 123 block within tolerance using the mill, CNC machine, and drill press for squaring, cutting and holes


Interchangeable Die Attachment Base for Arbor Press

by

Interchangeable Die attachment base for Arbor Press

Project Description:

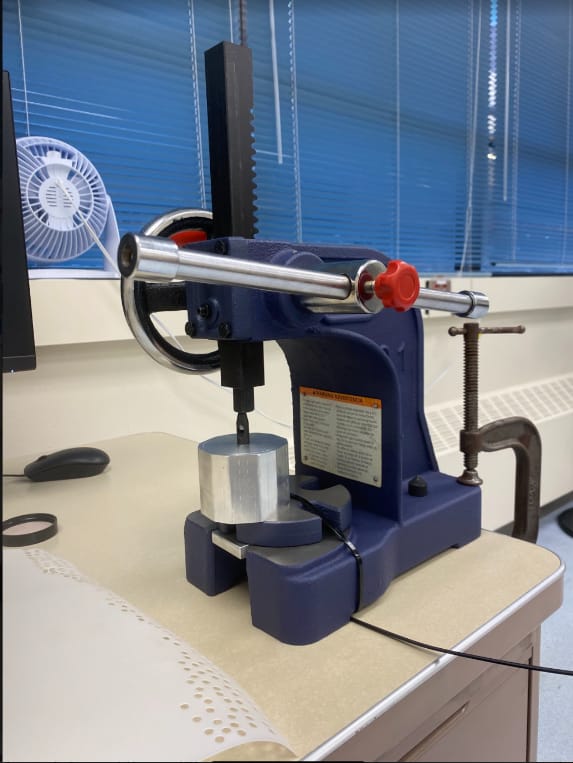

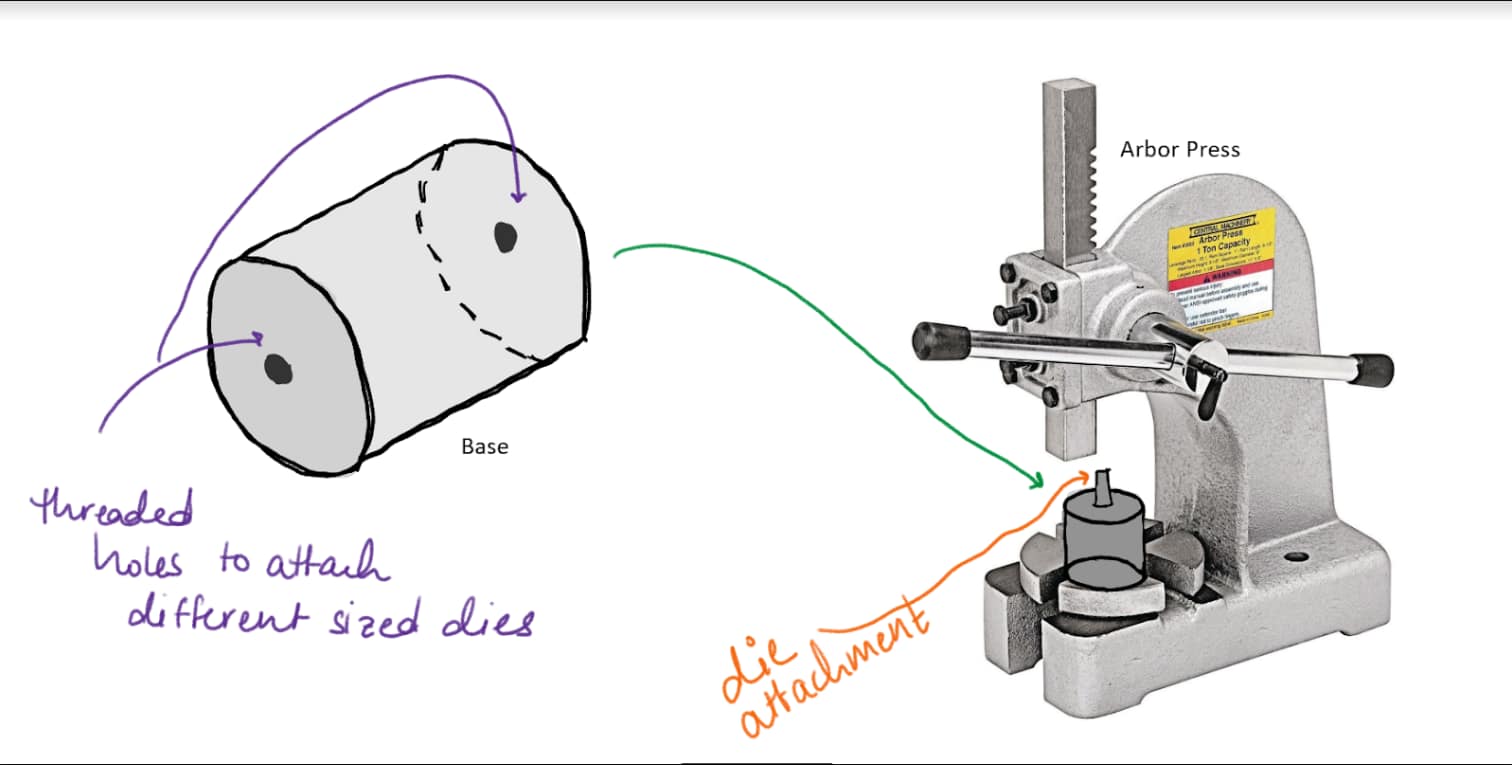

Machined a base for interchangeable die attachments (to attach to arbor press) in the machine shop

Work Completed:

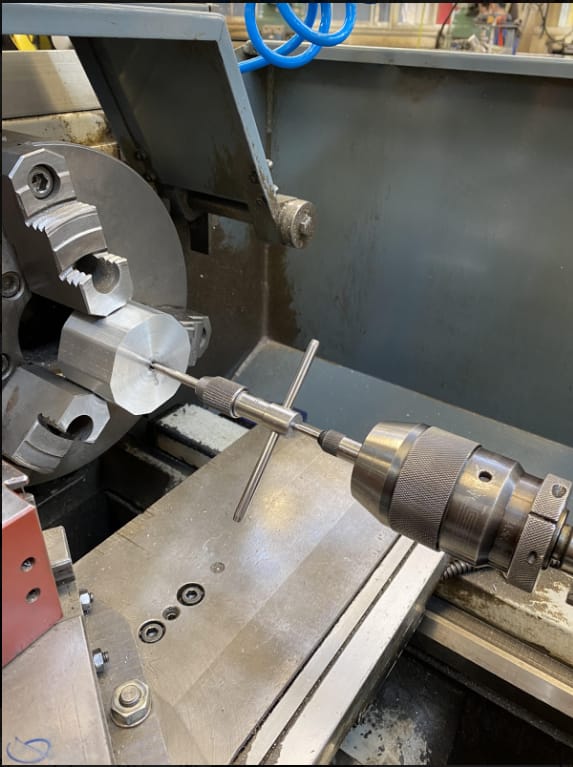

I started out with a piece of aluminum stock metal. Using the lathe, I began evening out the faces of the cylinder on the lathe – this was done so the base could sit properly on the arbor press without tilting over to one side. I then drilled holes on both sides of the cylinder and threaded by hand tapping them, for the die attachments. One of the holes would be used to attach the die, and the other would be to attach the base to the arbor press.
